| Product: Android TV BOX | Model: MORTAL Q1MINI+ | ||||||||

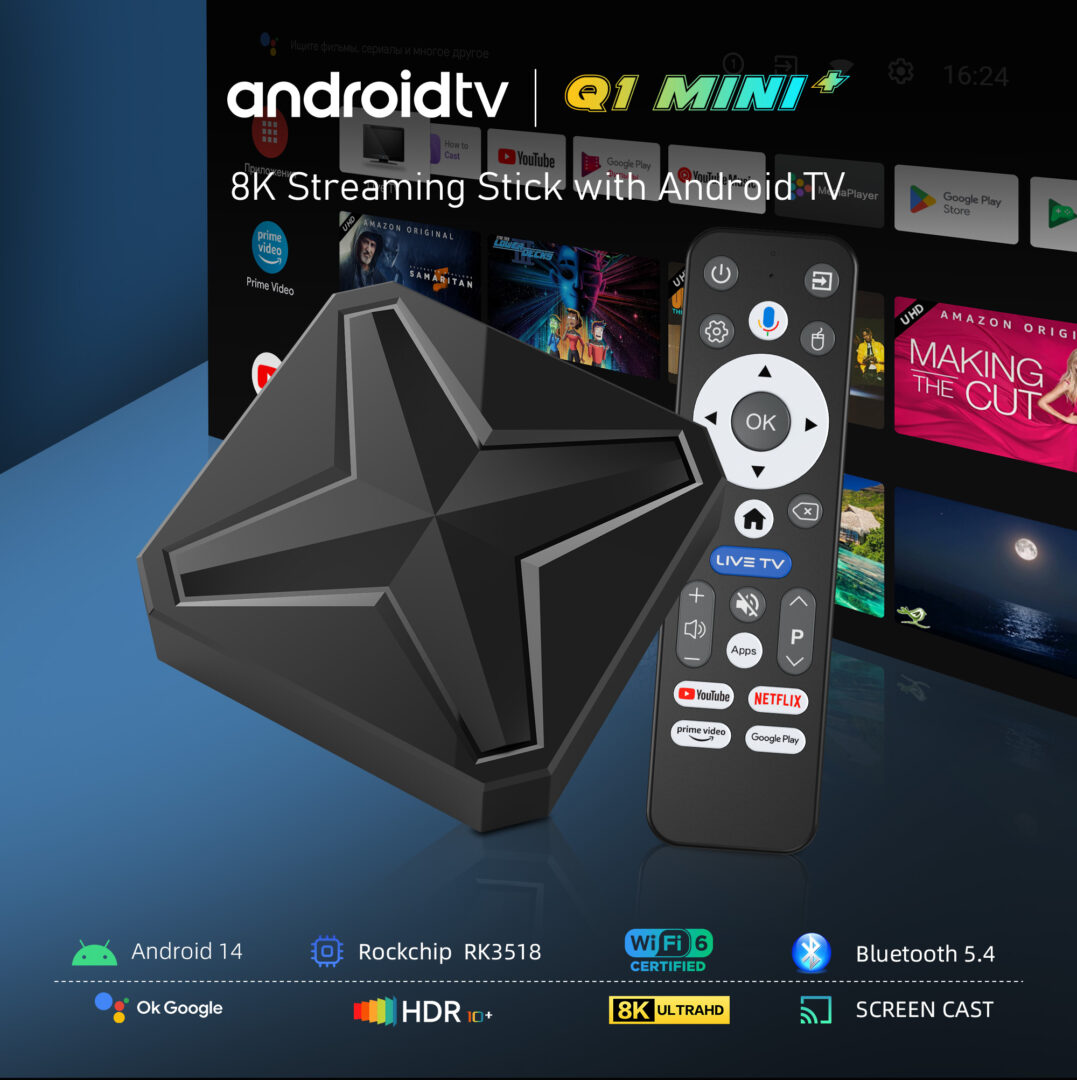

| Photo | |||||||||

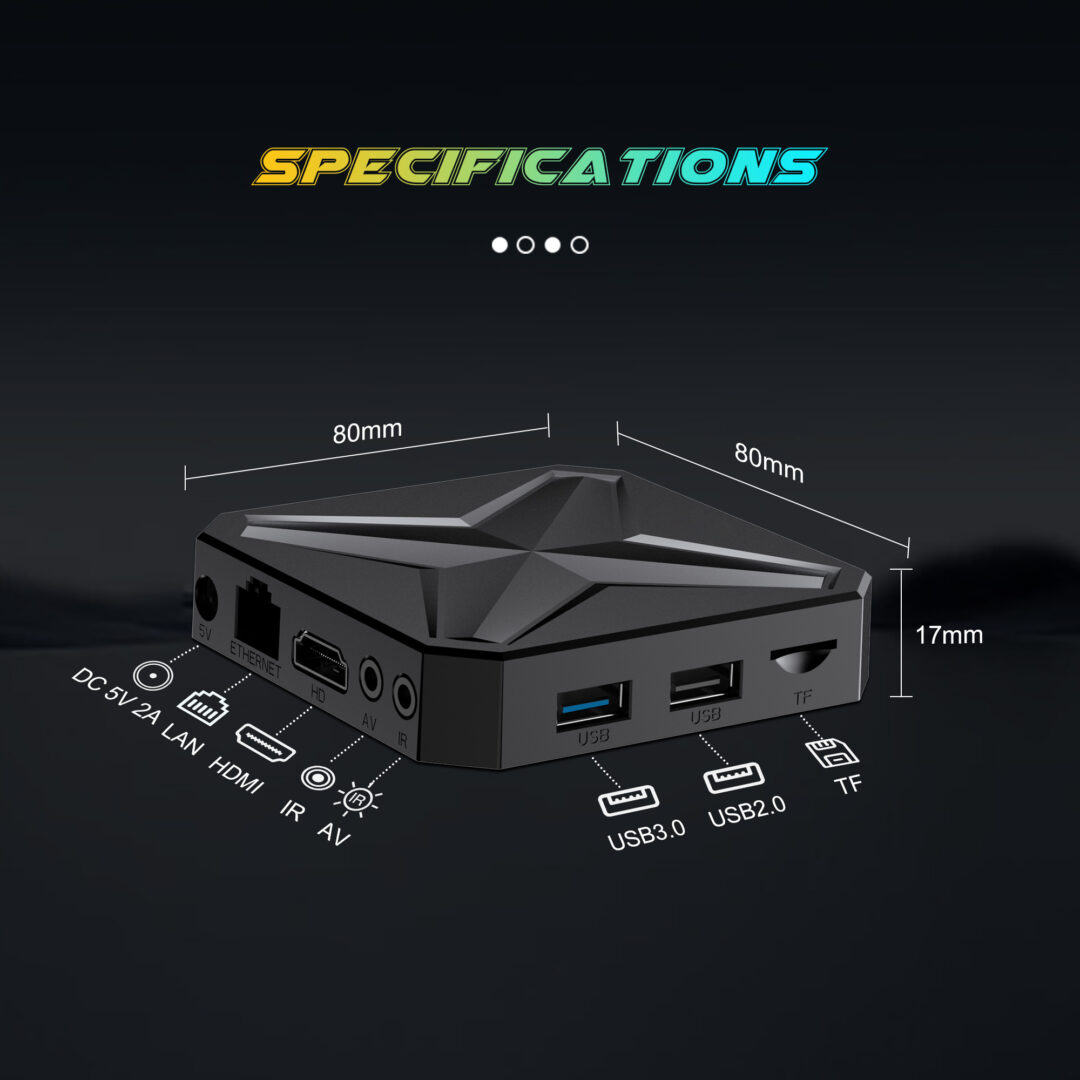

| Product dimension | 80 x 81 x 17mm | ||||||||
| Qty per unit packing | 1PC | ||||||||
| Unit packing: (L*W*H) | 171x 110 x 55 mm | ||||||||
| Unit packing (G.W.) | 0.26kg | ||||||||
| Product Colour | Black | ||||||||
| Specifications | |||||||||
| Chipset | RK3518 Quad Core Cores-A53 | ||||||||
| GPU | Mali 450 MP2 | ||||||||
| FLASH | EMMC 16G | ||||||||
| SDRAM | 2G | ||||||||

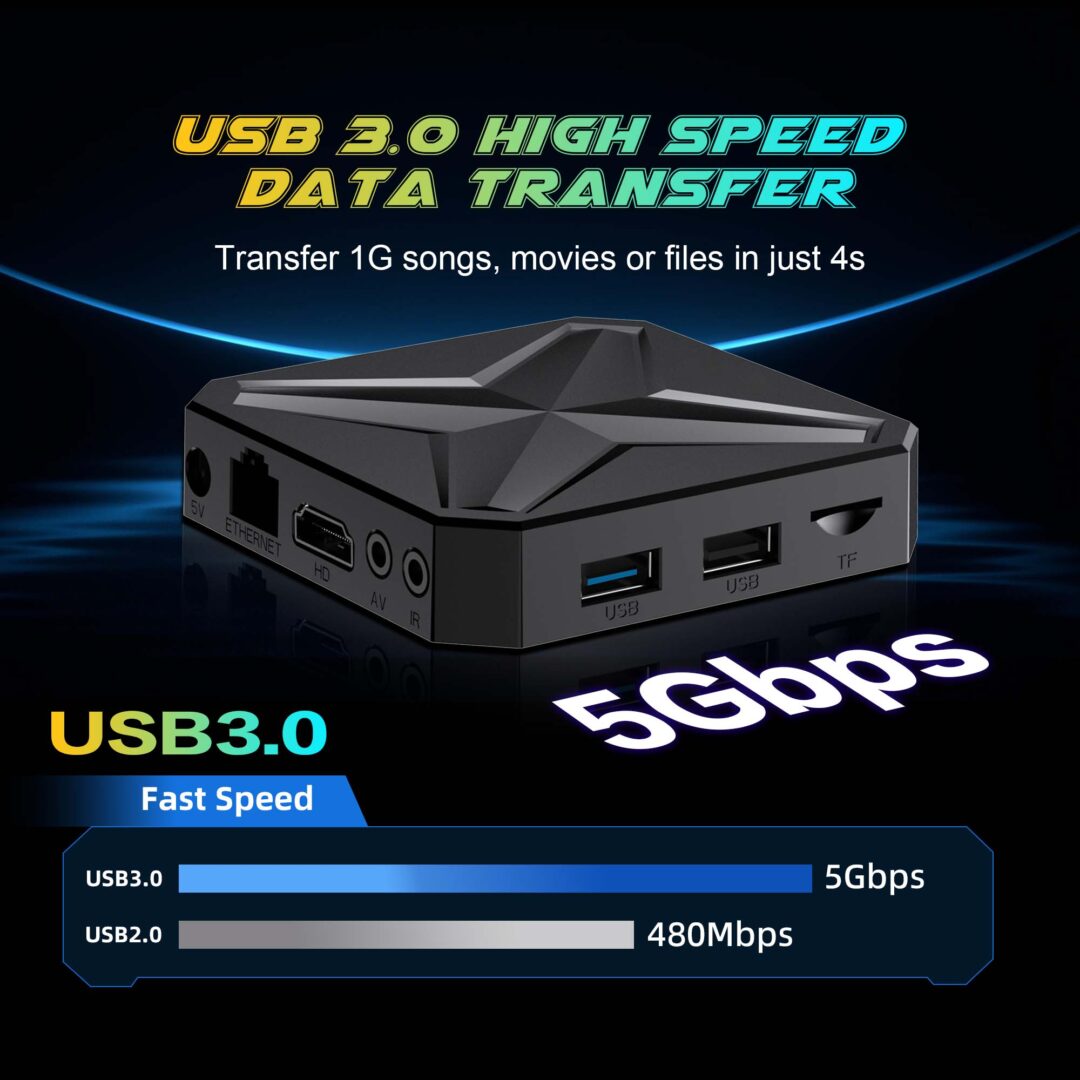

| USB | 2*USB3.0 | ||||||||
| LAN | Ethernet:10/100M standard RJ-45 | ||||||||
| Bluetooth | BT5.4 | ||||||||
| Wireless | 2.4G /5.8G dual-band Wifi 802.11 a/b/g/n/ac/ax WiFi6 2T2R | ||||||||
| SPDIF/IEC958 | Optical | ||||||||
| Card reader | Micro SD cards ,Maximum support 128G | ||||||||
| DisplayPort | HDMI | ||||||||
| HDMI | HDMI 2.0b for 4k@60Hz | ||||||||
| Power Indicator (LED) | Standby :Red | ||||||||
| Remote | VOICE | ||||||||
| Power Supply | INPUT：100-240V 50/60HZ OUTPUT:DC 5V/2A | ||||||||
| AV | Support | ||||||||
| Operating temperature | ﹣10℃ to 45℃ | ||||||||
| OS | Android 14.0 | ||||||||
| Support Decoder format | H.264/H.265/VP9 up to 8K@30fps H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps VP9 P2 4KX2K @60fps AVS2 4KX2K @60fps MPEG-1, Main profile, up to 1080P @ 60fps MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps | ||||||||
| Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | ||||||||
| Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | ||||||||
| Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF | ||||||||
| HDD file system | FAT16/FAT32/NTFS | ||||||||
| Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | ||||||||
| High Definition video output | 8K (7680×4320 pixel ) | ||||||||
| OSD type of languages | English/French/German/Spanish/Italian/ etc multilateral languages | ||||||||
| Mouse/ Keyboard | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle | ||||||||
| Software Specifications | |||||||||
| Network Function | KODI 18.1 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc | ||||||||
| Other feature | Free Internet searching,thousands of android applications,many kinds of games,etc. | ||||||||
| Certification | CE,FCC,ROHS | ||||||||

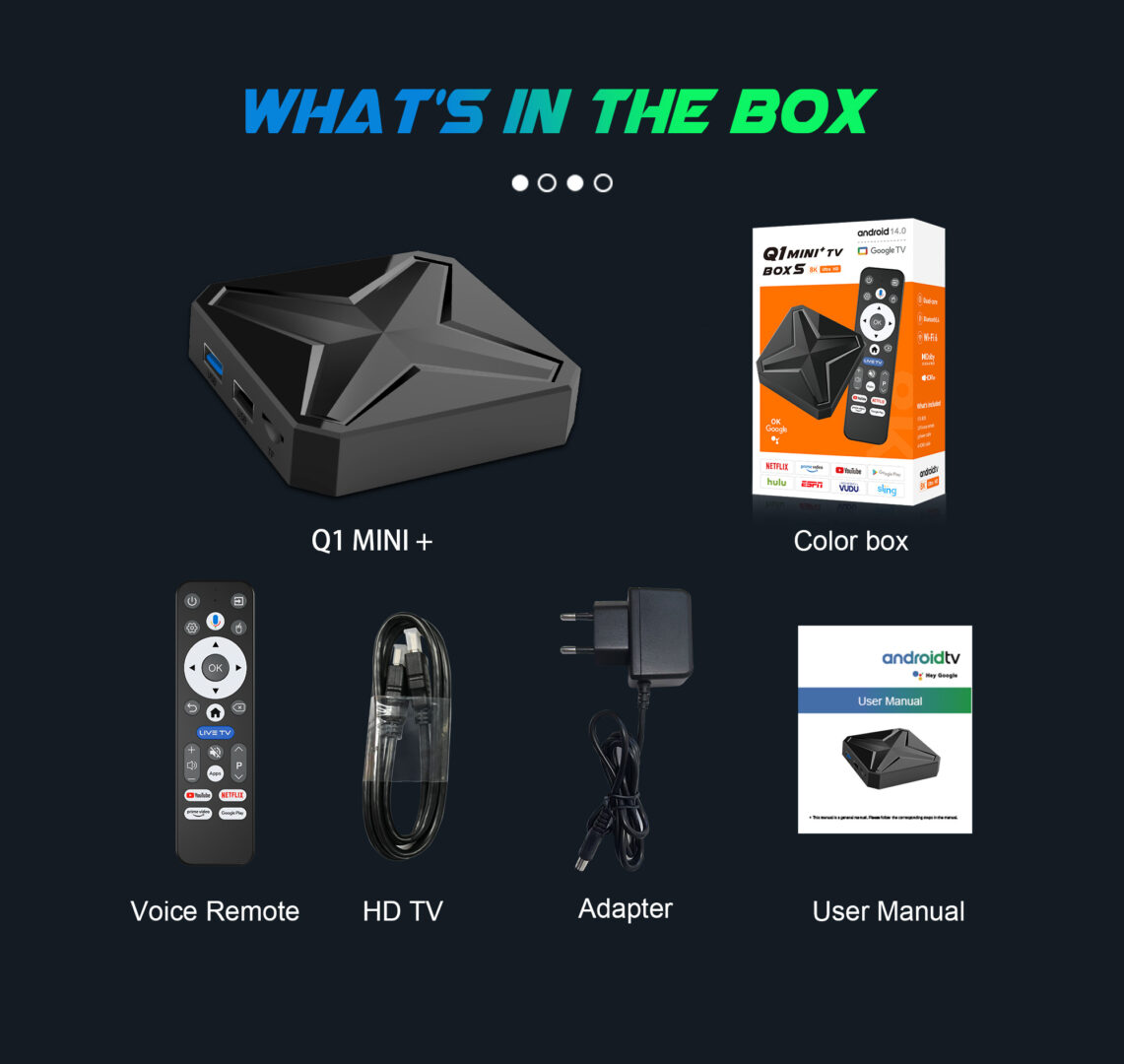

| Accessories | Power adaptor,HDMI cable,user manual ,remote | ||||||||
| Option | Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle, | ||||||||
