About this item

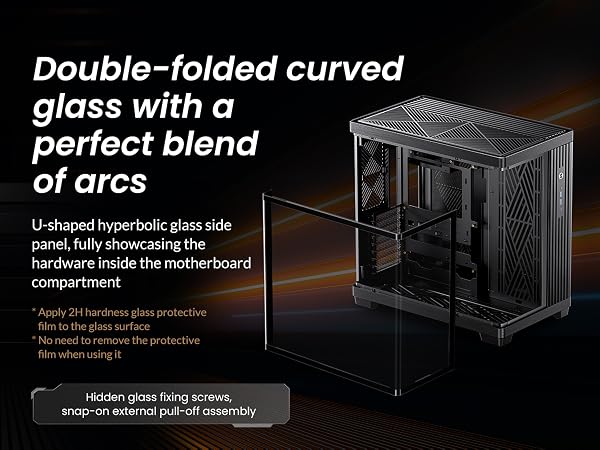

- Case Design: JONSBO TK-4 WOOD Separated Cabinet PC Case, ATX Computer Case- Bi-Bent Surround View Glass :Hardwares inside clearly, with 2H hardness glass protection film applied to glass surfaces Tips: No tear off the curved-glass explosion-proof film

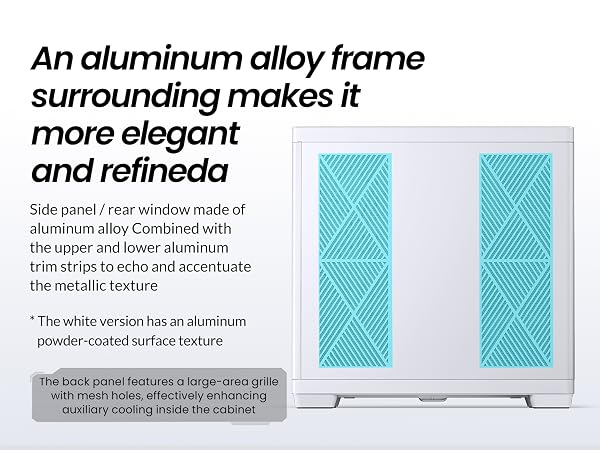

- Material Construction: Premium aluminum alloy construction providing durability and enhanced thermal performance Material : SGCC 1.0mm /Plastic / Glass:4mm / AL 2.0mm
- Motherboard Compatibility: Supports multiple form factors including ITX, M-ATX, and ATX with back-connect (BTF) motherboard support
- Component Clearance: Accommodates 【graphics cards/GPU】 up to 460mm/18.11 inch in length and 【power 】supplies up to 200mm/7.87 inch

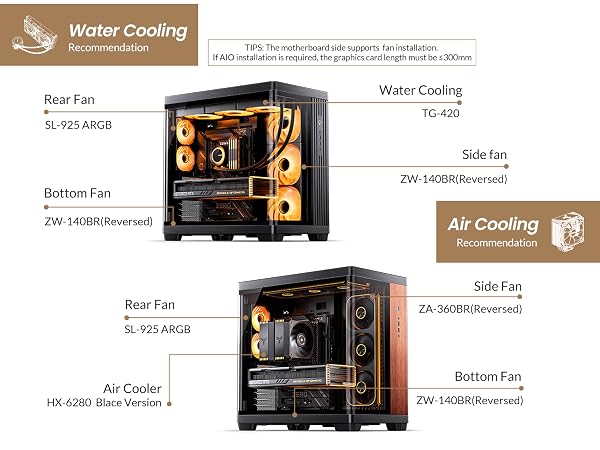

- Case with improved cooling : Large area cooling grilles on the back panel 【With 9 fan positions】Fan：Top 120mm*3/140*3(optional); Bottom 140mm*3(built-in) / 120mm*3(optional); Side 140mm*3(built-in) / 120mm*3(optional); Back 92mm*2(built-in) 【Dual 420 AIO】 mounting positions (Top, Bottom) 【Air Cooler】:175mm/6.89 inch
- 【Drive Bay】:3.5HDD *4 or 2.5SSD*2/3.5HDD*2 【Front Port】:USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1+MIC*1 (2 IN 1)

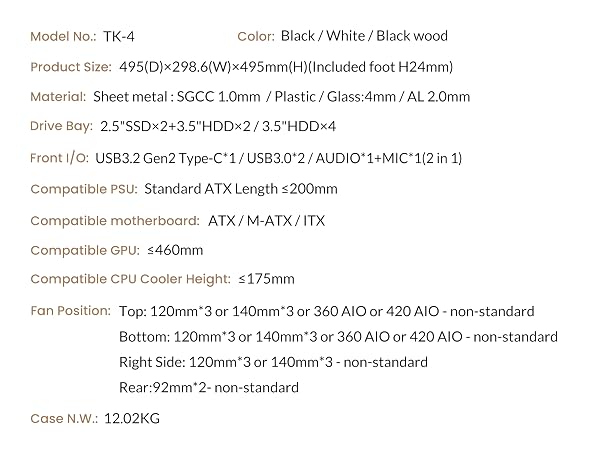

| Model：TK-4 |
| Color: Black WOOD |
| Dimension：495mm (D) * 298.6mm (W) * 495mm (H) |
| Material：SGCC 1.0mm steel / 4mm glass / AL 2.0mm / wood |
| Motherboard：ITX / M-ATX / ATX |
| Drive Bay：2.5″SSD*2 + 3.5″HHD*2 / 3.5″HDD*4 |
| Fan：Top 120mm*3/140*3(optional); Bottom 140mm*3(built-in) / 120mm*3(optional); Side 140mm*3(built-in) / 120mm*3(optional); Back 92mm*2(built-in) |
| Water Cooling: Top 360mm*1 or 420mm*1(optional); Bottom 360mm*1 or 420mm*1(optional) |
| Power Supply: ATX≤200mm |
| CPU Cooler: 175mm |
| Video Card: ≤460mm |
| Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2 in 1） |
| Expansion Slot：8 |
