Jonsbo D31 MESH SC White

Official website: Click Here

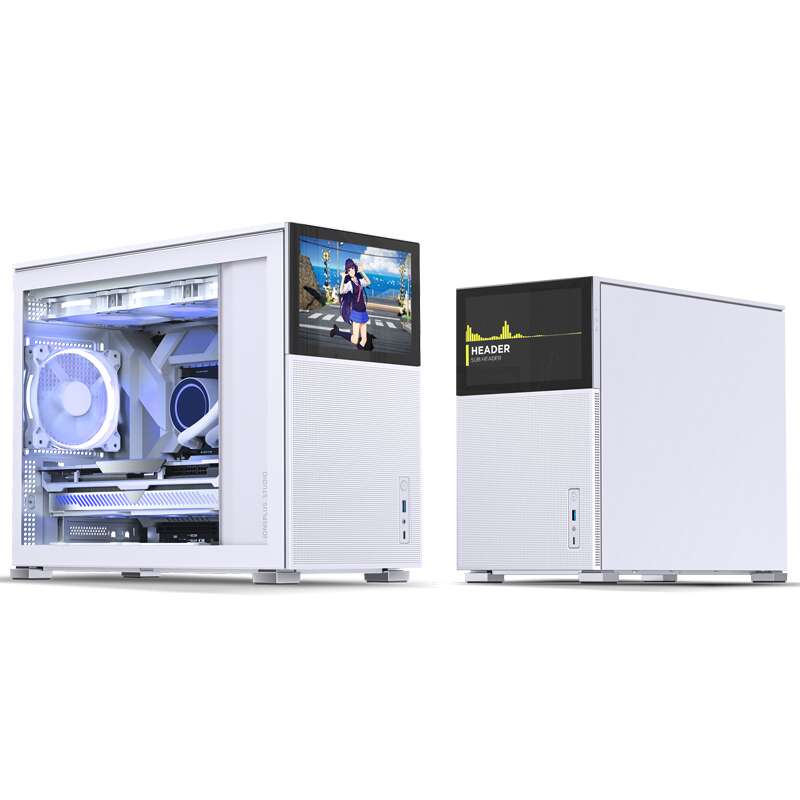

Screen display spec：

Dimension：24.6mm(W) * 131.7(H) * 205.3(L)
Display size：8〞 Color TFT-LCD
Colors：16.7M
Resolution：1280*800
Response Time：30ms(Typ.)
Brightness：300cd/m2(Typ.)
Contrast Ratio：1000（Typ.）
I/O：MINI-HDMI*1(Video Signal)
TYPE-C*1
Refresh Rate(max.)：60Hz
Working Temperture：0-50℃

Product Specification：

Model：D31 MESH SCREEN White

Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)
Depth does not include the PCI brackets outside the chassis, height does not include case stand
205mm (W) * 363mm(H) * 452mm(D) (overall size)

Material：0.6mm+0.7mm steel panel
Drive Bay：2.5〞SSD*2+3.5〞HDD*1
Motherboard：ITX /DTX/ M-ATX
PCI expansion slots：4
Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support：ATX
CPU cooler support：168mm

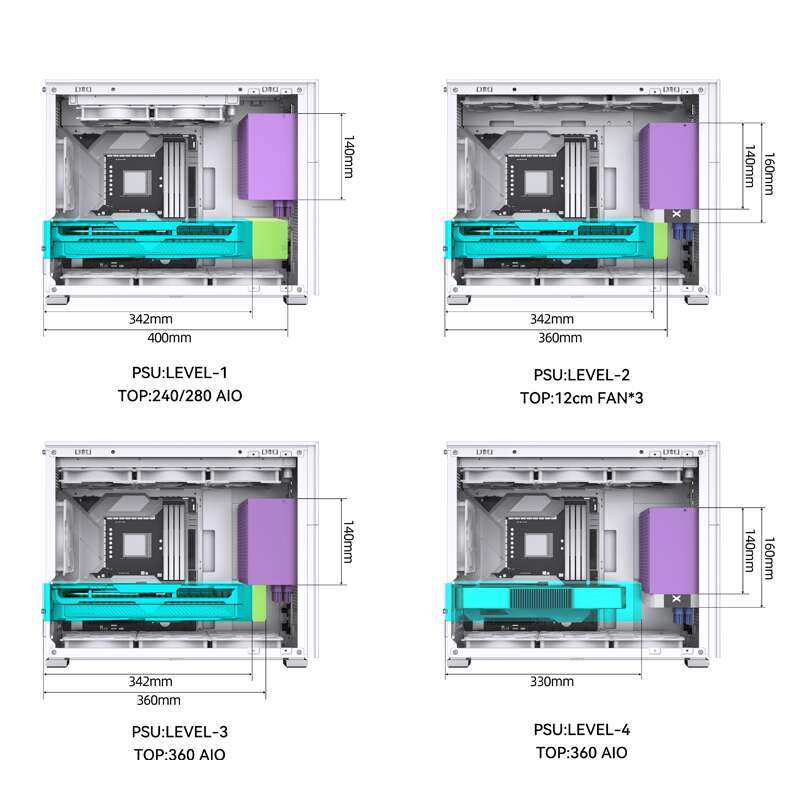

Graphics card support：330-400mm
Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Radiator support： Top 240/280/360*1  , Rear 120*1  , Bottom 240/360*1
